Low insertion loss and high isolation
High stability and high reliability
Low PDL
Parameter | Specification | ||
Operating Wavelength(nm) | 1260-1620 | ||
Center Wavelength | ITU Grid | ||
Channel Space (Hz) | 100G | 200G | |
Channel Span(nm) | 0.22 | 0.5 | |
Center Wavelength Shift(nm) | 0.05 | 0.1 | |
.Max. Insertion Loss (dB) | Transmission | 1.2 | |
Reflection | 0.5 | ||
Min. Isolation (dB) | Adjacent channel | ＞30 | |
Non-adjacent channel | ＞40 | ||
Reflection channel | ＞15 | ||
Max. PDL (dB) | 0.1 | ||
Min. Directivity (dB) | 55 | ||
Min. Return Loss (dB ) | 50 | ||
Max. PMD (ps) | 0.1 | ||
Fiber Length (m) | 1.0 or Customer request | ||
Fiber Type | SMF-28e | ||
Fiber Packaging | Bare fiber or Ф0.9mm loose tube | ||
Thermal Stability (dB/℃) | 0.005 | ||
Max. Power handling (mW) | 500 | ||
Operating Temperature(℃) | -20~70 | ||
Storage Temperature（℃） | -40~85 | ||

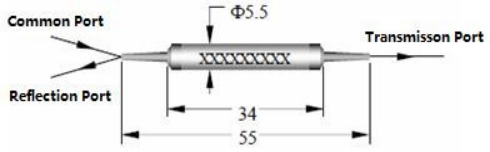

Packaging Size（nm）(D*L) | Ф5.5× L34 | Ф4.0× L25 | |
