DWDM Transmission
Metro Area Networks
Long-haul Networks
PON Networks
Building Blocks for ROADM
Items | SPEC |
Channel spacing | ITU 100GHz（0.8nm） |
Channel numbers | 40CH |
Technology | AAWG（Gaussian） |
1dB Bandwidth (nm) | >0.4 |
Insertion Loss (including connector loss) | <5.7dB |
Uniformity (dB) | <1.2 |
Ripple (dB) | <0.5 |
Adjacent Channel Isolation (dB) | >25 |
Non-Adjacent Channel Isolation (dB) | >30 |
Total Channel Isolator (dB) | >22 |
PDL (dB) | <0.5 |
Return Loss (dB) | >45 |
CD (ps/nm) | -20～+20 |
PMD (ps) | <0.5 |
Operating Temperature (℃) | -5～65 |
Storage Temperature (℃) | -40～85 |
Fiber Type | SMF-28e |

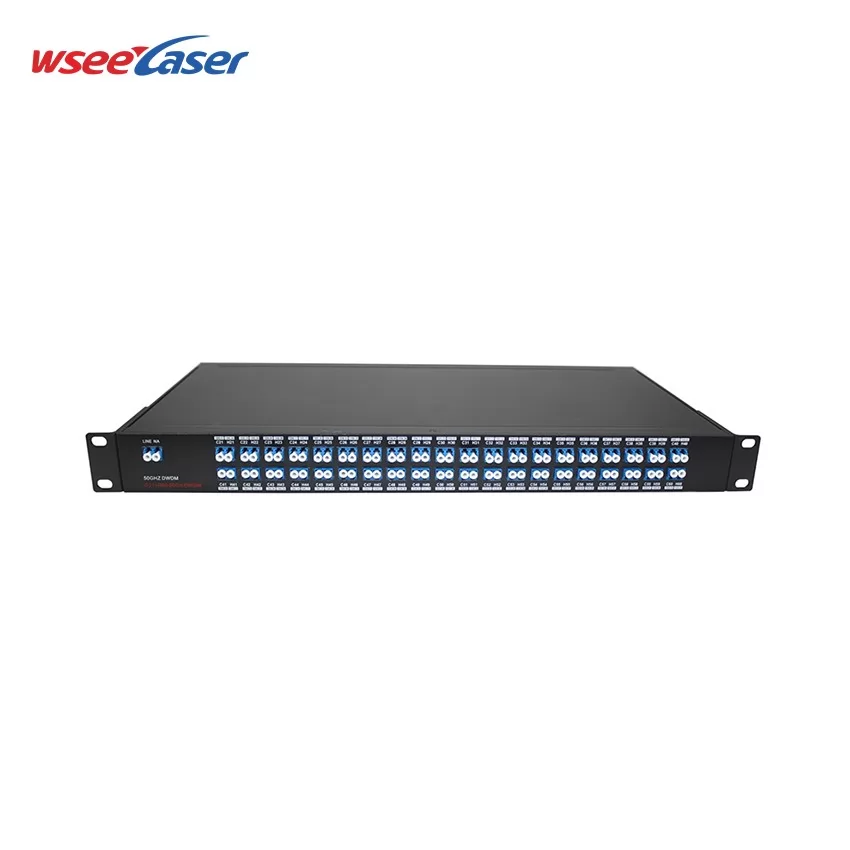

Packaging Dimension(mm) | 19inch 1U Chassis, 431.5*250*44mm |
