Low insertion loss and high isolation
High stability and high reliability
Low PDL
Parameter | Value | Unit |
Operating avelength | ITU,ITU+1 | nm |
Pass band | ITU+6.5 | nm |
Operating Wavelength | 1260~1620 or 1460~1620 | nm |
Channel Space | 20 | nm |
Pass Channel Insertion Loss | ≤0.6 | dB |
Reflect Channel Insertion Loss | ≤ 0.4 | dB |
Transmission Isolation | ≥30 | dB |
Reflection Isolation | ≥14 | dB |
Pass band Ripple | ≤0.3 | dB |
PDL | ≤0.1 | dB |
PMD | ≤0.2 | Ps |
RL | ≥45 | dB |
Directivity | ≥50 | dB |
Maximum Optical Power | 500 | mw |
Operating Temperature | -5～+70 | ℃ |
Storage Temperature | -40～+85 | ℃ |

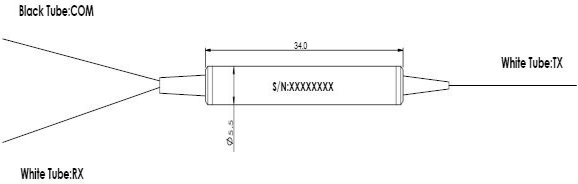

Package Dimensions | Ф5.5XL34 | mm |
