Line monitoring.
WDM network.
Telecommunication.
Equipment test areas.
Cellular Application.
Fiber optical amplifier.
Access Network.
Parameter | MUX DEMUX | |
DWDM central wavelength | C21-C36 16CH dual fiber | |
Channel spacing | ITU 100Ghz grid | |
Pass band @ -0.5dB | Minimum 0.3 nm | |
Insertion Loss (dB) (COM to DWDM port) | Maximum 5.0 dB | |
Adjacent isolation | N/A | ≥ 30 dB |
Non-adjacent isolation | N/A | ≥ 40 dB |
Insertion loss temperature sensitivity | ≤ 0.003 dB/ºC | |
Wavelength temperature shifting | ≤ 0.002 nm/ ºC | |
Polarization temperature loss | ≤ 0.1 dB | |
Polarization mode dispersion | ≤ 0.1 ps | |
Directivity | > 50 dB | |
Return loss | > 45 dB | |
Operating temperature range | -20 to 75 ºC | |
Storage temperature range | -40 to 85 ºC | |
Operating humidity range | Maximum 85% RH, non-condensing | |

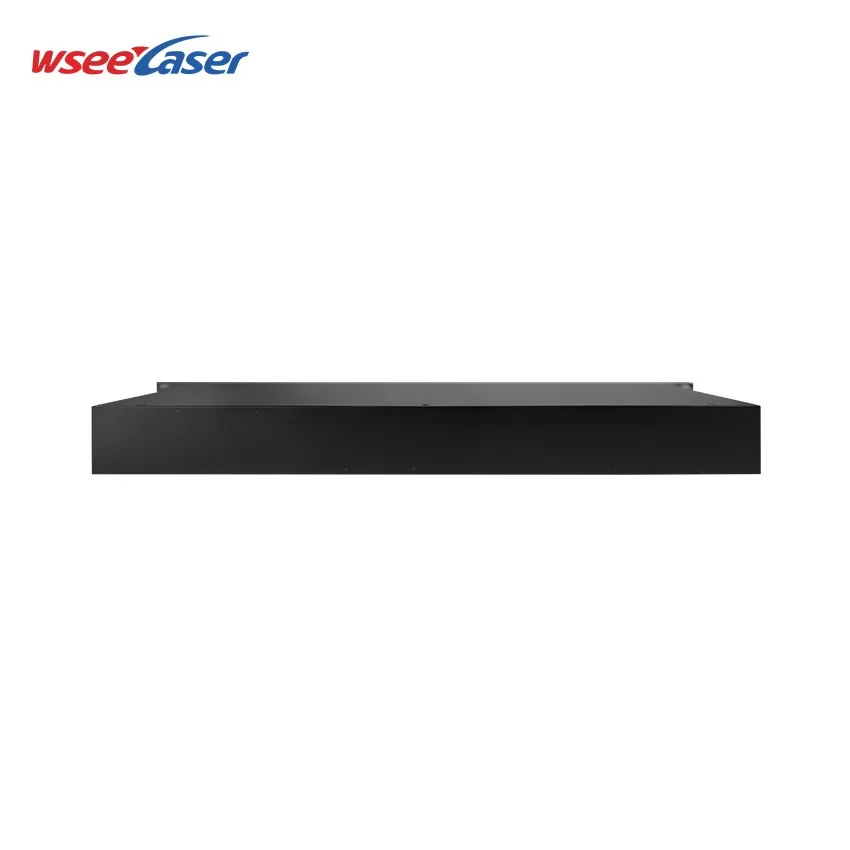

Package dimension (W x H x D) | 19inch 1U Chassis, 431.5*250*44mm | |
