Low insertion loss and high isolation
High stability and high reliability
Low PDL
Parameter | Value | Unit | ||
Operating Wavelength | T1310/R1490/1550 | T1550/R1310/1490 | T1490/1550/R1310 | nm |
Transmission IL | ≤0.8 ( Typ 0.6 ) | dB | ||
Reflection IL | ≤0.6 ( Typ 0.4 ) | dB | ||
Transmission Isolation | ≥30 | dB | ||
Reflection Isolation | ≥12 | dB | ||
Pass band Ripple | ≤0.3 | dB | ||
PDL | ≤0.1 | dB | ||
PMD | ≤0.1 | Ps | ||
RL | ≥45 | dB | ||
Directivity | ≥50 | dB | ||
Maximum Optical Power | 500 | mw | ||
Fiber Type | SMF-28e | -- | ||
Operating Temperature | -5~+65 | ℃ | ||
Storage Temperature | -40~+85 | ℃ | ||

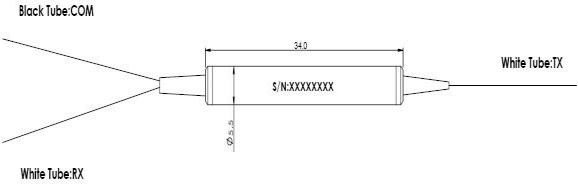

Package Dimensions | Ф5.5XL34 or | mm | ||
