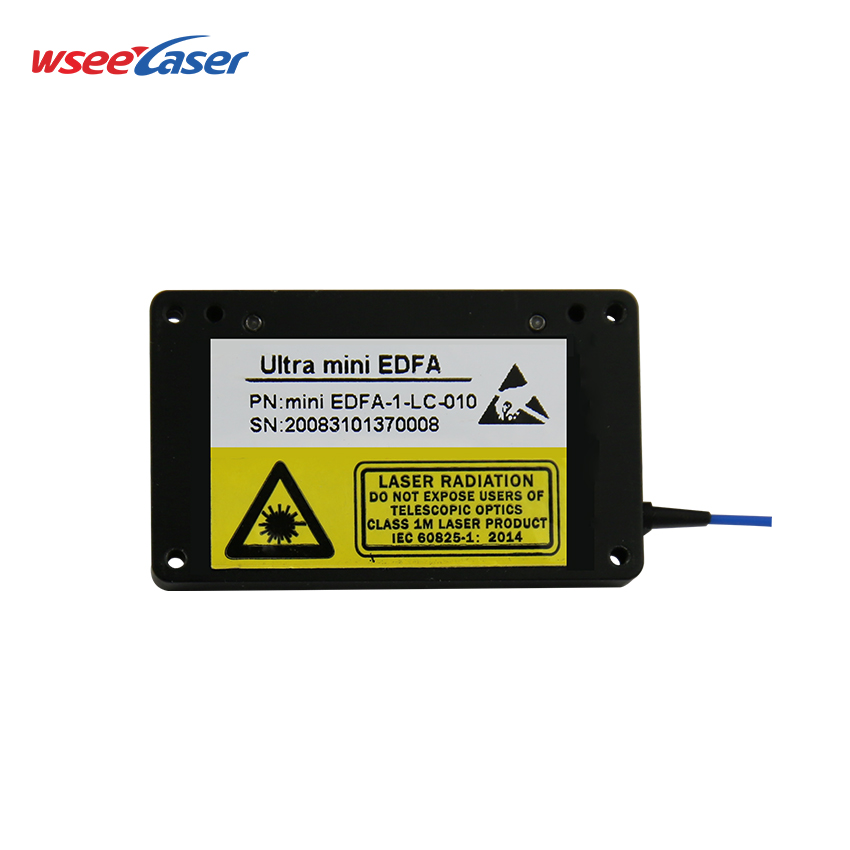

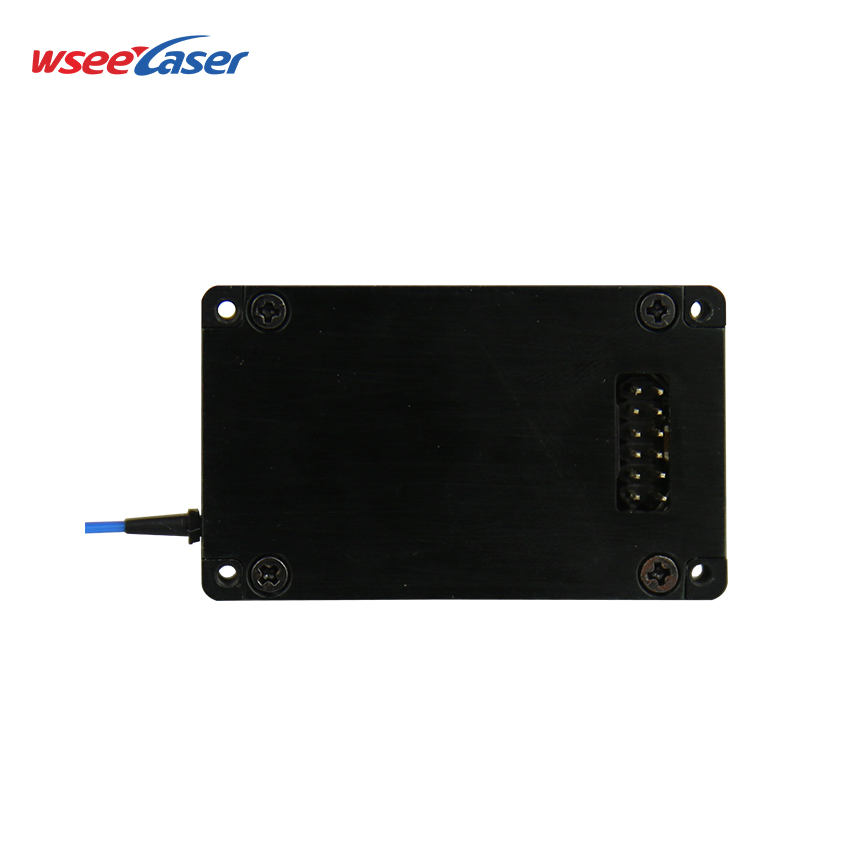

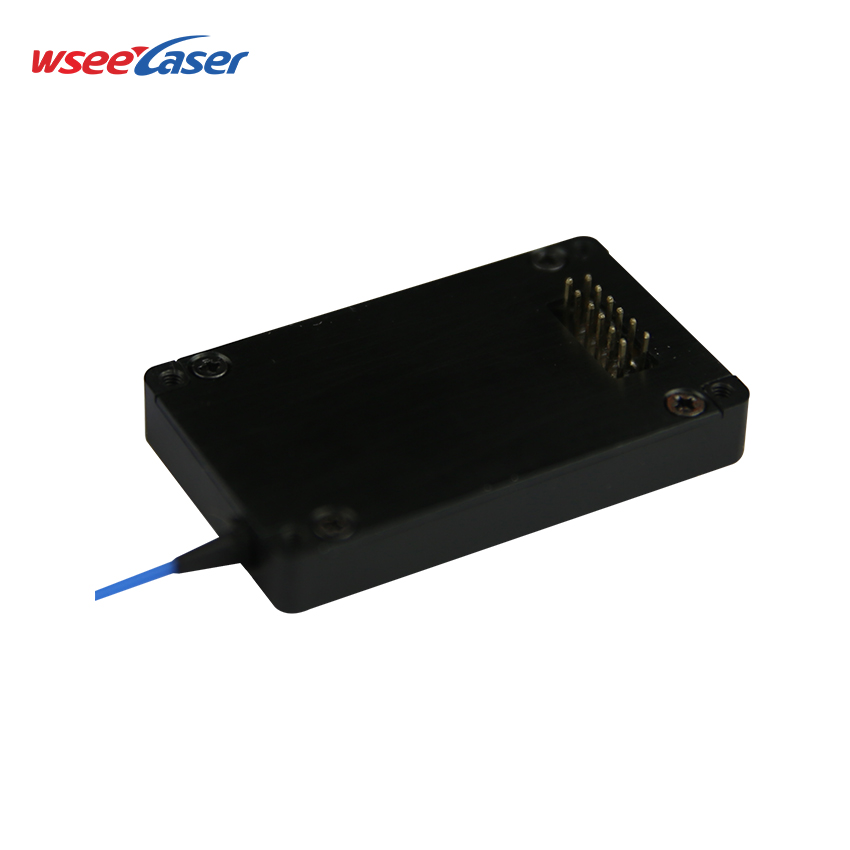

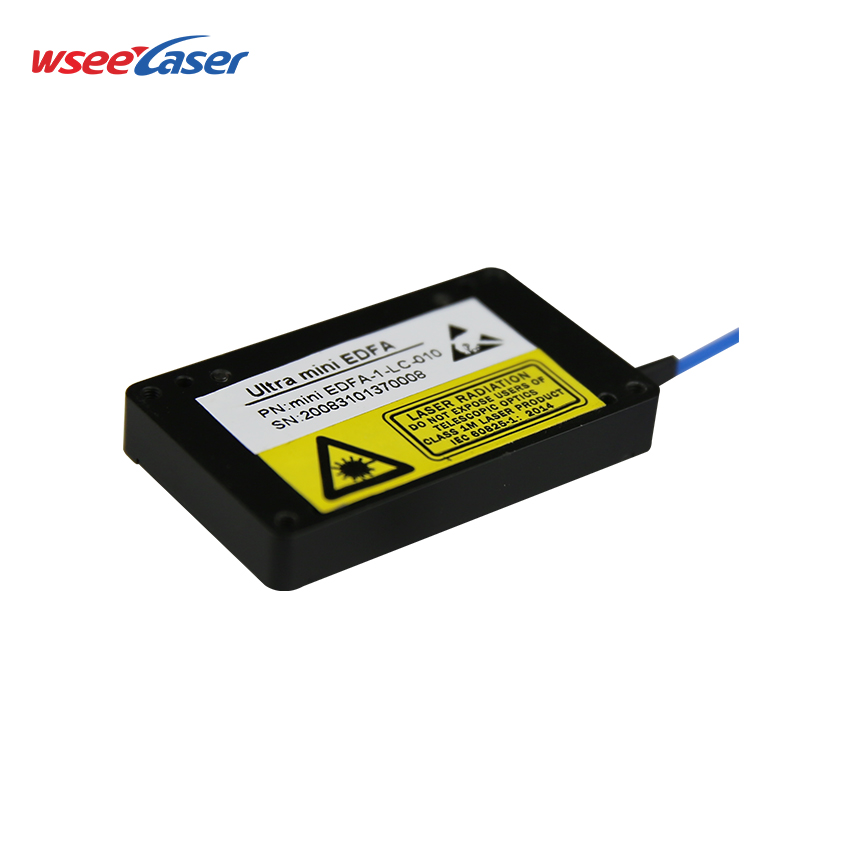

This document describes the specifications of the mini optical amplifiers modules. The module has build-in control electronics and communication interface.
Features
Supporting operating modes: APC and ACC
Monitoring and Alarm output
RS232 Communication interface
Firmware download
Standards
Telcordia GR-1312-CORE
ROHS
Parameter | Unit | Min | Typ. | Max. | Note | |
Operating Wavelength | nm | 1528 | 1550 | 1567 | ||
Channel Number | 1 | |||||
Input Power | dBm | -18 | 0 | |||
Output Power | dBm | 0 | 6 | |||
Nominal Gain | dB | 18 | ||||
PDL | dB | 0.5 | ||||
PMD | ps | 0.3 | ||||
Input and Output Return Loss | dB | 40 | ||||
Turn-On time | ms | 5 | ||||
Turn-Off time | ms | 5 | ||||
