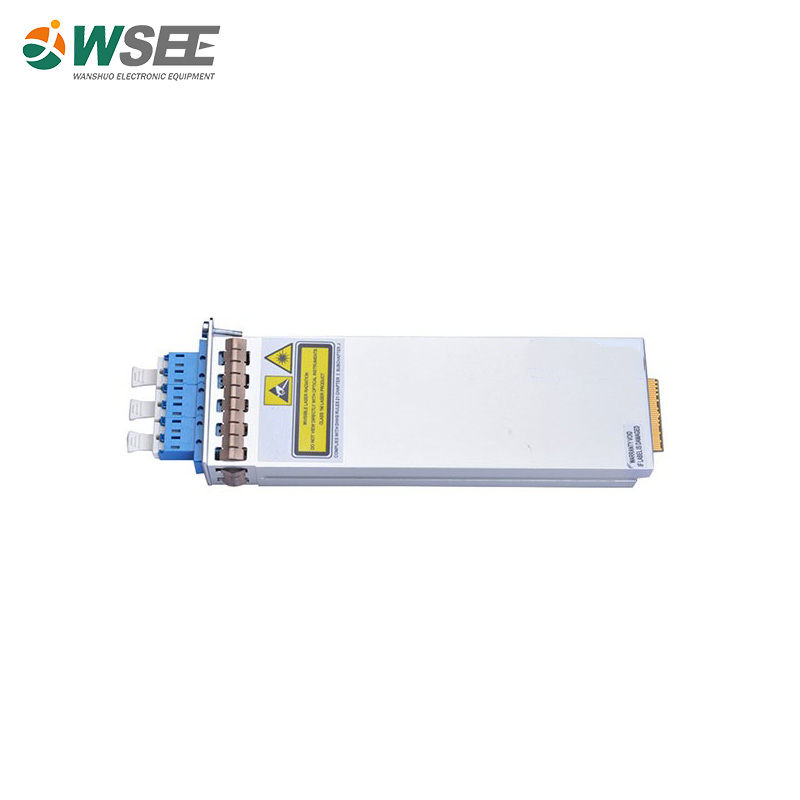

● CFP2 compatible footprint
● Fully-controlled module with communication interface
● Support AGC/APC mode
● Low power consumption
Parameter | Max | Min | Specification | Unit |
Operating Wavelength | 1529 ~ 1564 | nm | ||
Input Power | -30 ~ 0 | dBm | ||
Output Power | -13 ~ +17 | dBm | ||
Gain | √ | 20 | dB | |
Noise Figure (Pin=0 dBm, Pout=17 dBm) | √ | 5.5 | dB | |
Gain Flatness (Peak-Peak) | √ | 1.5 | dB | |
PDG | √ | 0.5 | dB | |
PMD | √ | 0.5 | ps | |
Input/Output Return Loss | √ | 40 | dB | |
Input Transient Time | 100 | μs | ||
Transient Overshoot/Undershoot (19 dB Add/Drop) | √ | 1.5 | dB | |
Transient Settling Time (19 dB Add/Drop) | √ | 1000 | μs | |
Transient Gain Offset | √ | 0.5 | dB | |
Communication Interface | RS232 | |||
Power Supply Voltage | 3.3 | V | ||
Power Consumption | √ | 8 | W | |
Operating Temperature | -5 ~ +55 | °C | ||
Storage Temperature | -25 ~ +75 | °C | ||
Relative Humidity (non-condensation) | 5 ~ 95 | % | ||
Dimensions | 107.5*41.5*12.4 | mm |

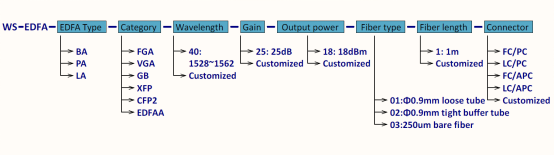

Order Information
