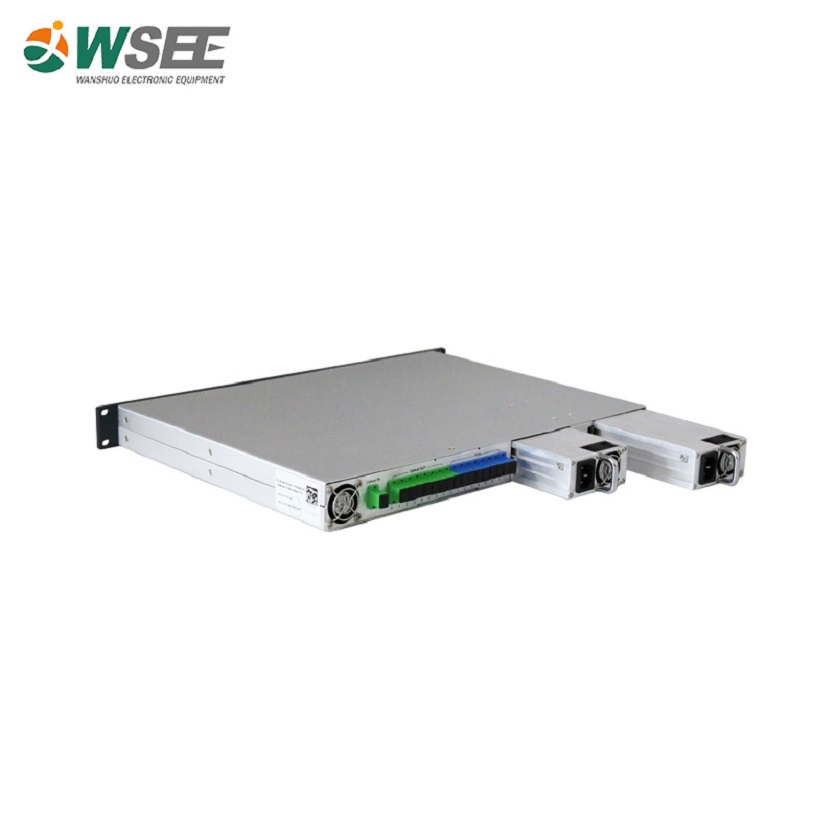

Features
● 1RU chassis, high quality brushed aluminum case
● 1/4/8/16 Ports, optional OSW and WDM function for CATV+PON transmission
● band width 1535~1565nm
● Optional total power 23~35dBm
● Low noise, low power consumption, high performance
● Interactive front panel LCD displays system parameters and alarm status

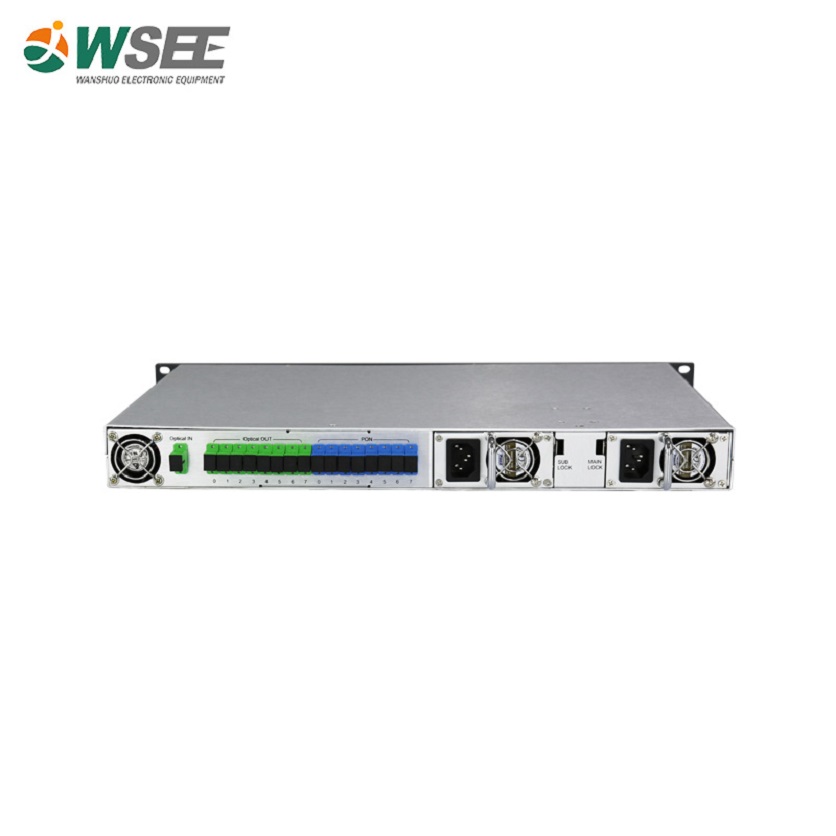

● Front panel RS232 and RJ45 ports for serial communication and SNMP network interface
● Auto-off when optical power not present
● Using the world's top class pump laser
● Perfect APC, ACC and AGC control

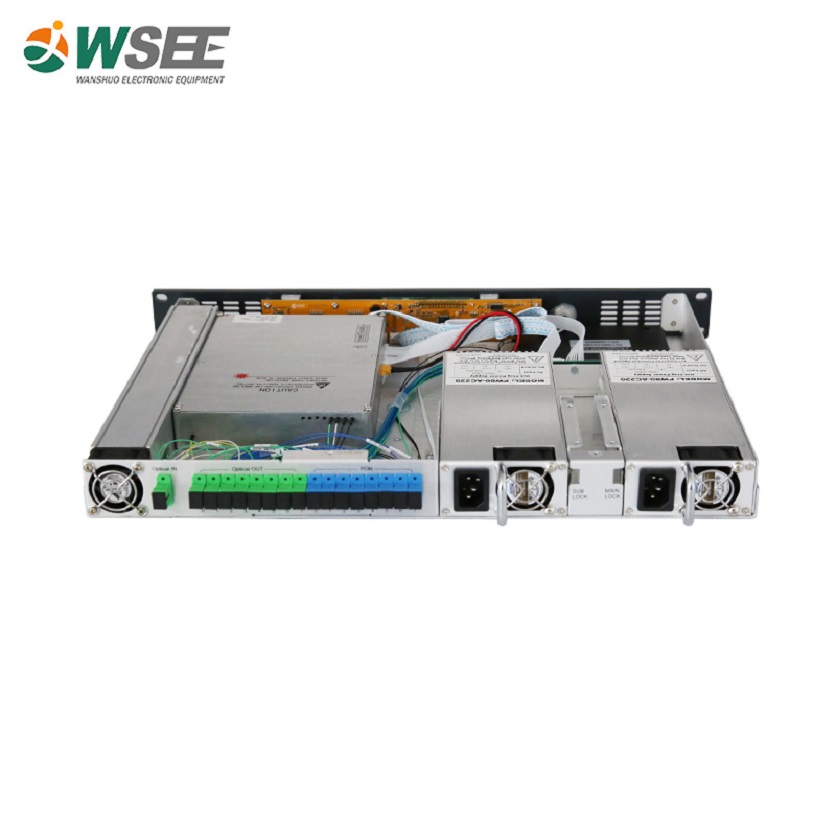

● Modulated design, dual power supply back up, hot-plug function available
● OEM or ODM service available for different requirements of projects
Application
● CATV
● FTTH
● Broadcasting
● Cable net
● Telecom
Item | Unit | Technical parameter | Notes | |
Bandwidth | nm | 1535~1565 | ||
Input optical power range | dBm | -5 ~ +10 | ||
Output optical power range | dBm | 23~35 | ||
Noise figure pin | dB | ≤ 5.0 | @+0dBm Input， λ=1550nm | |
Reflection loss | Input end | dB | ≥ 45 | |
Output end | dB | ≥ 45 | ||
Output Optical port number | 1/4/8/16 ports without wd m; 1/4/8 ports with wdm | Customized | ||
Optical connector type | SC/APC;SC/PC;LC/APC;LC/PC | Customized | ||
C/N | dB | ≥ 50 | The test conditions are performed by GT/T 184-2002. | |
C/CTB | dB | ≥ 63 | ||
C/CSO | dB | ≥ 63 | ||
Supply voltage | V | AC220V(160V ~ 265V) / AC110V（90 ~130V）/ DC48V（38 ~ 58V） | Customized | |
Machine power consumption | W | ≤ 50 | ||
Working temperature range | ℃ | -5 ~ +42 | ||
Maximum relative humidity | % | Maximum 95% without condensing | ||
Storage temperature range | ℃ | -30 ~ +70 | ||
Maximum storage relative humidity | % | Maximum 95% without condensing | ||
size | mm | 357(W)*482(L)*44(H) | ||
Packing size (oneset) | mm | 595(W)*490(L)*120(H) | ||
Packing size (two sets) | mm | 595(W)*490(L)*230(H) | ||

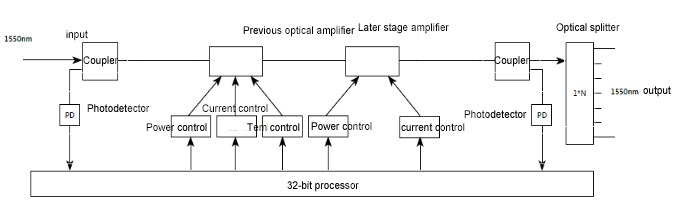

Principle Diagram
