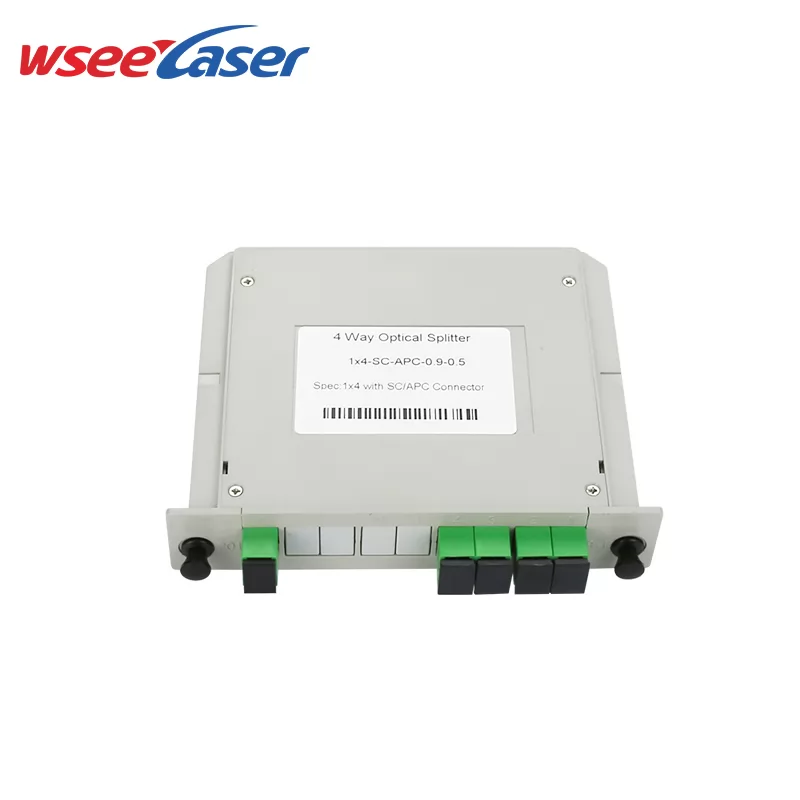

High channel counts
High stability and reliability
Low insertion loss and low PDL
Wide Operating Wavelength
Wide Operating Temperature
Compact design
1xN PLC Specifications
Parameter | Port Configuration | ||||||
1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | ||
Fiber Type | SMF-28e or customer specified | ||||||
Operating Wavelength(nm) | 1260～1650 nm | ||||||
Insertion Loss(dB) | Typical | 3.7 | 6.8 | 10 | 13 | 16 | 19.5 |
Max | 4 | 7.2 | 10.5 | 13.5 | 16.9 | 21 | |
Loss Uniformity (dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
PDL (dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
Temperature Dependent Loss(-40~+85°C) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
Operating Temperature (°C) | -40~+85 ℃ | ||||||
Storage Temperature (°C) | -40~+85 ℃ | ||||||
2xN PLC Specifications
Parameter | Port Configuration | ||||||
2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 | ||
Fiber Type | SMF-28e or customer specified | ||||||
Operating Wavelength(nm) | 1260～1650nm | ||||||
Insertion Loss(dB) | Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 | |
Loss Uniformity (dB) | Max | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
PDL (dB) | Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | Max | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
Temperature Dependent Loss(-40~+85°C) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
Operating Temperature (°C) | -40~+85 ℃ | ||||||
Storage Temperature (°C) | -40~+85 ℃ | ||||||
