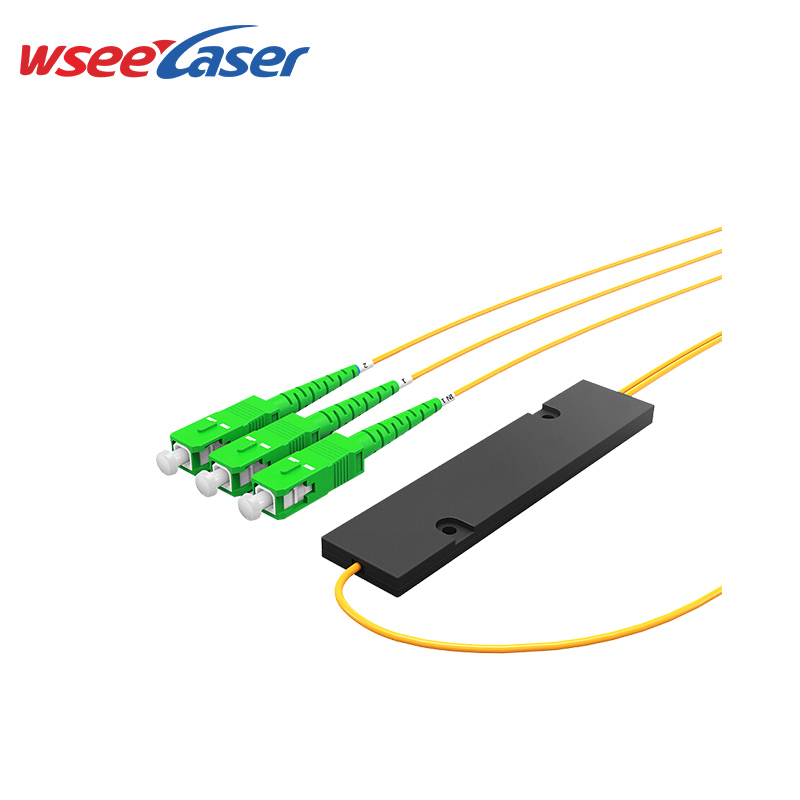

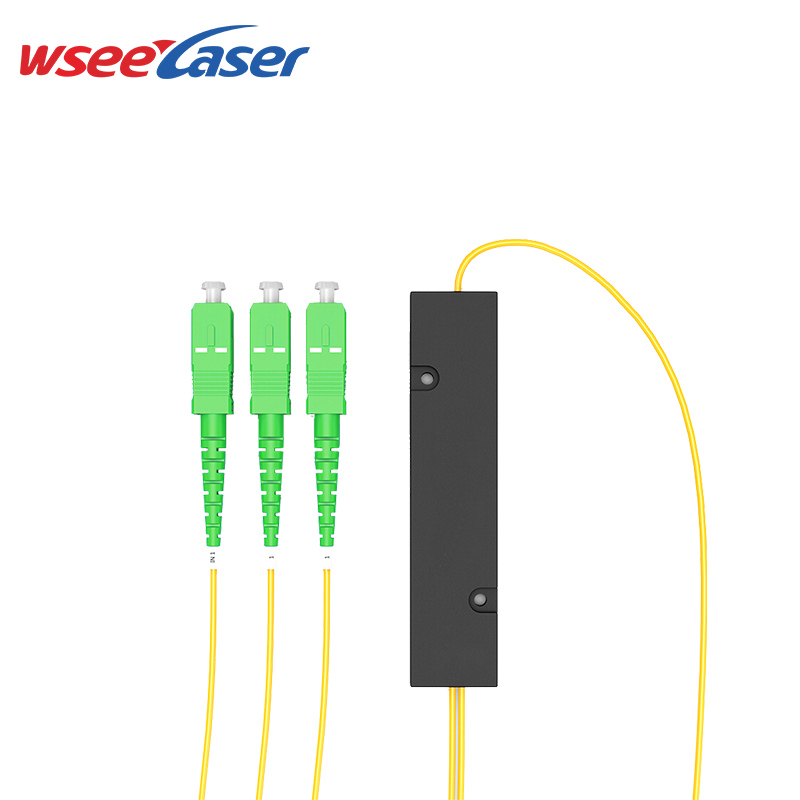

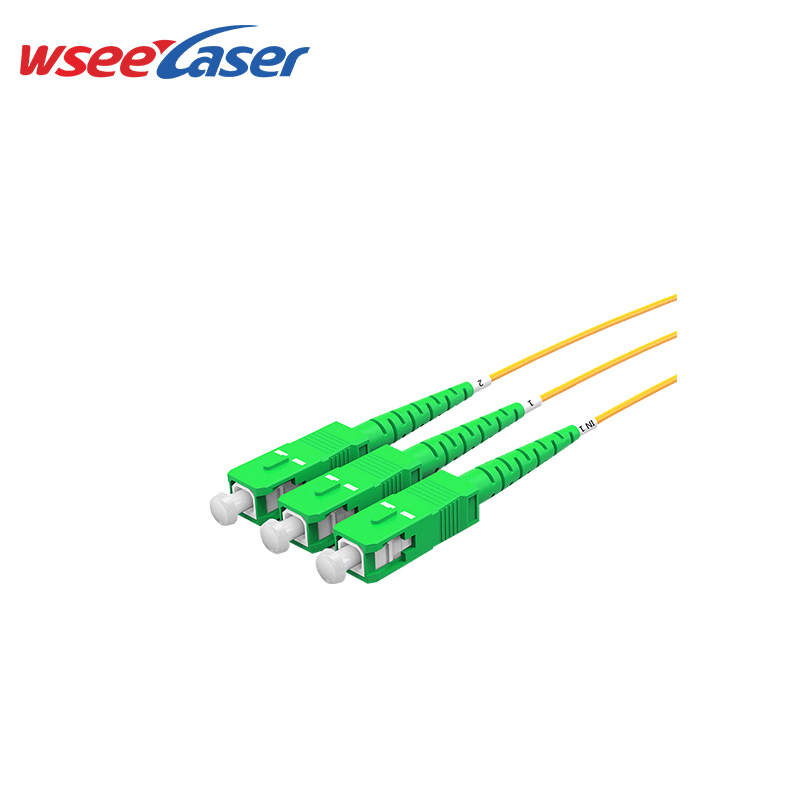

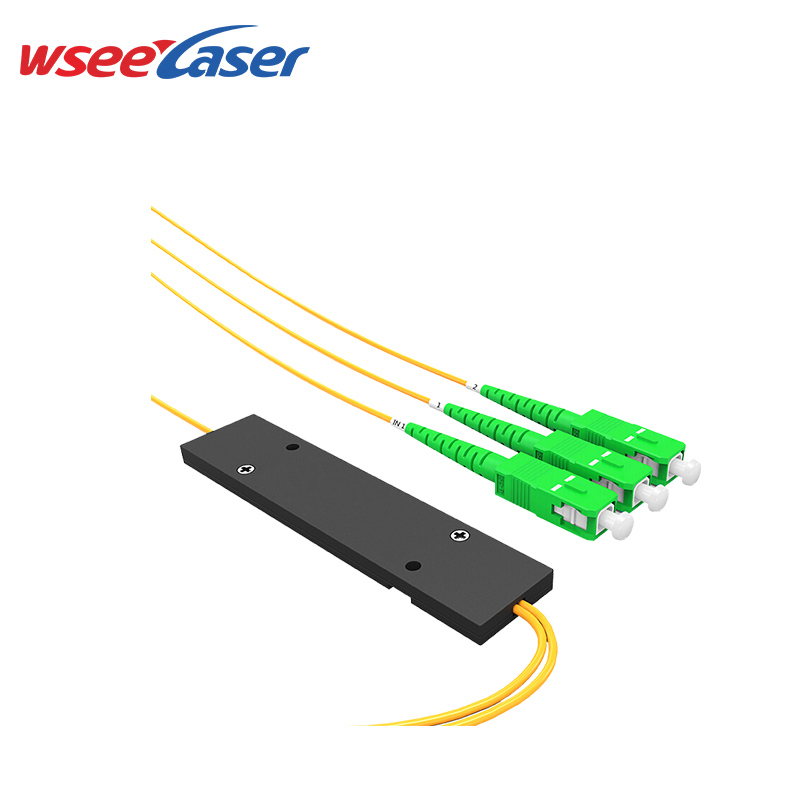

FBT coupler

Single Mode Standard Coupler (SSC)

Parameter

P Grade

Operating wavelength (nm)

1550

Operating bandwidth (nm)

±40

Typical excess loss

0.1

Insertion Loss(dB)

5/95

≤15.0

≤0.35

1/99

≤21.5

≤0.15

PDL(dB)

≤0.15

Directivity(dB)

≥55

Operating temperature(℃）

-40 ~ +85

*The above specification is without connector

**Other specifications can be made according to customer request.
