Low Insertion Loss & PDL
High Isolation & Return Loss
High reliability
Parameter | Value | ||
Type | Single Stage | Dual Stage | |
Center wavelength (nm) | 1310、1550 | ||
Bandwidth (nm) | ±20 | ||
Peak Isolation (dB) | 40 | 58 | |
Isolation at 23(°C) (dB) | ≥30 | ≥48 | |
Insertion Loss at 23(°C) (dB) | ≤0.5(Typ 0.35) | ≤0.55 (Typ 0.4) | |
PDL(dB) | Polarization insensitive | ≤0.10 | ≤0.10 |
Return Loss (Input/output) (dB) | ≥50/50 | ≥50/50 | |
Fiber Type | SMF-28e or Specify | ||
Power Handling (CW, W) | 2, 3, 5,10 | ||
Operating Temperature (°C) | -5 ~ +70 | ||
Storage Temperature(°C) | -40 ~ +85 | ||

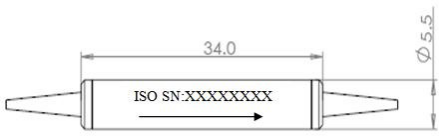

Package Dimensions (mm) | 5.5x34(P1), 58*10*8（P2） | ||
