Features | |||
GPON | • Tcont DBA, • Gemport traffic, • conform to ITU-T984.x standard • transmission distance up to 20KM, • data encryption, multicast, port VLAN, isolation, RSTP, etc., support ONT automatic discovery/link detection/software remote upgrade • VLAN division and user isolation, and avoid broadcast storms • the power failure alarm function, which is convenient to detect link problems • broadcast storm suppression • port isolation between different ports |
DHCP | • DHCP server, DHCP, relay, DHCP snooping • DHCP option82 |
Multica st |
• GMP snooping and support 2048 IP multicast groups | ||
L2 |
• 16K Mac addresses，4096 VLANs, • port based VLANs and protocol VLANs, • VLAN tag/Un-tag, VLAN transparent transmission • VLAN translation, and QinQ, • port-based storm control • port isolation and port rate limiting • 802.1D and 802.1W • static LACP, dynamic LACP, • QoS based on port, VID, TOS, and MAC addresses, access control list • IEEE802.x flow control, • port stability statistics and monitoring |
L3 | • ARP proxies • 6K hardware host routes, 512 hardware subnet routes • 802.1X, Radius, Tacacs+ • IP source protection • static routes, dynamic routes, RIP v1/v2, RIPng, and OSPF v2/v3 |
Managem ent | • SNMP, Telnet, CLI, WEB, SSH • port status monitoring and configuration management, • online ONT configuration and management • user management, • alarm management | ||
Features | |||
GPON | • Tcont DBA, • Gemport traffic, • conform to ITU-T984.x standard • transmission distance up to 20KM, • data encryption, multicast, port VLAN, isolation, RSTP, etc., support ONT automatic discovery/link detection/software remote upgrade • VLAN division and user isolation, and avoid broadcast storms • the power failure alarm function, which is convenient to detect link problems • broadcast storm suppression • port isolation between different ports |
DHCP | • DHCP server, DHCP, relay, DHCP snooping • DHCP option82 |
Multica st |
• GMP snooping and support 2048 IP multicast groups | ||
L2 |
• 16K Mac addresses，4096 VLANs, • port based VLANs and protocol VLANs, • VLAN tag/Un-tag, VLAN transparent transmission • VLAN translation, and QinQ, • port-based storm control • port isolation and port rate limiting • 802.1D and 802.1W • static LACP, dynamic LACP, • QoS based on port, VID, TOS, and MAC addresses, access control list • IEEE802.x flow control, • port stability statistics and monitoring |
L3 | • ARP proxies • 6K hardware host routes, 512 hardware subnet routes • 802.1X, Radius, Tacacs+ • IP source protection • static routes, dynamic routes, RIP v1/v2, RIPng, and OSPF v2/v3 |
Managem ent | • SNMP, Telnet, CLI, WEB, SSH • port status monitoring and configuration management, • online ONT configuration and management • user management, • alarm management | ||
Physical properties | |
Dimension | 440mm*300mm*44mm(L*W*H) |
weight | <5kg |
power supply | 220VAC 50-60HZ |
Power consumption | <60W |
Environmenta l Specificatio ns | Operating Temperature: 0 to 40ºC Storage Temperature: -40 to 85ºC Operating Humidity: 5% to 90% (non-condensing). |
EMC | GB 9254-2008 Class B GB/T 17618-2015 |
Model | Product Description | Power config | Optical module config |

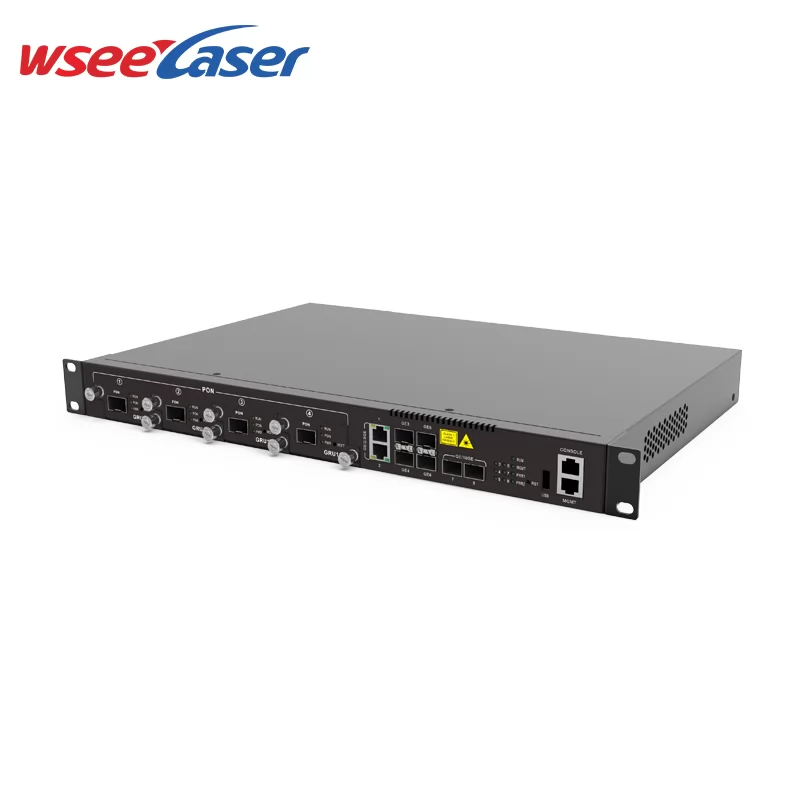

OT1200G4 |
1-4*GPON,2*RJ45+6*SFP/SFP+ |
• 1*AC power • 2*AC power | • GPON SFP C++ module • GPON SFP C+++ module • 1G SFP module • 10G SFP+ module |
