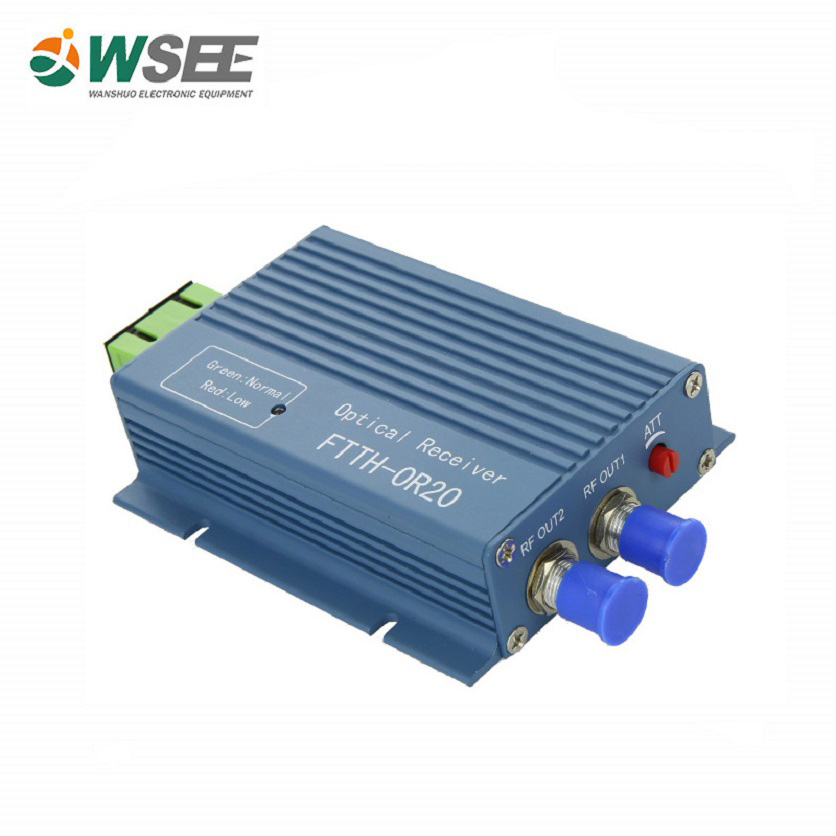

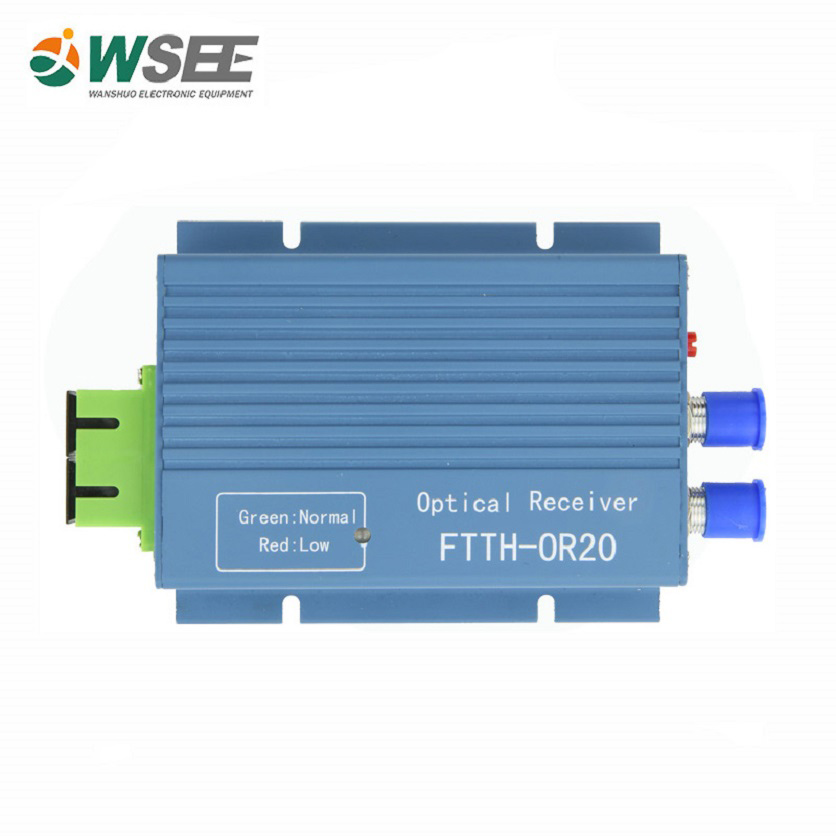

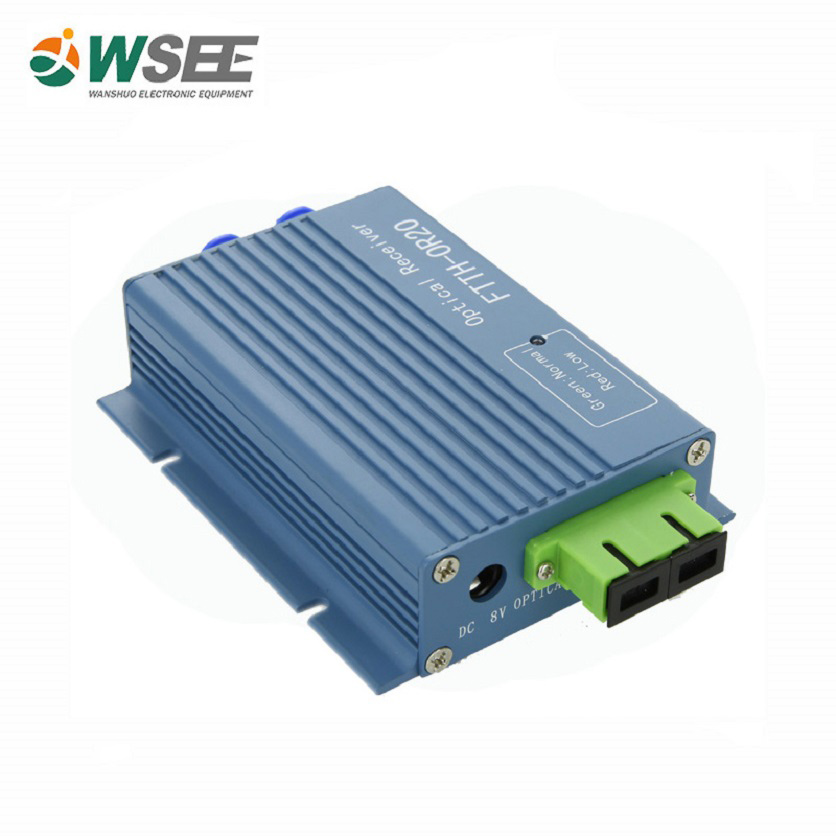

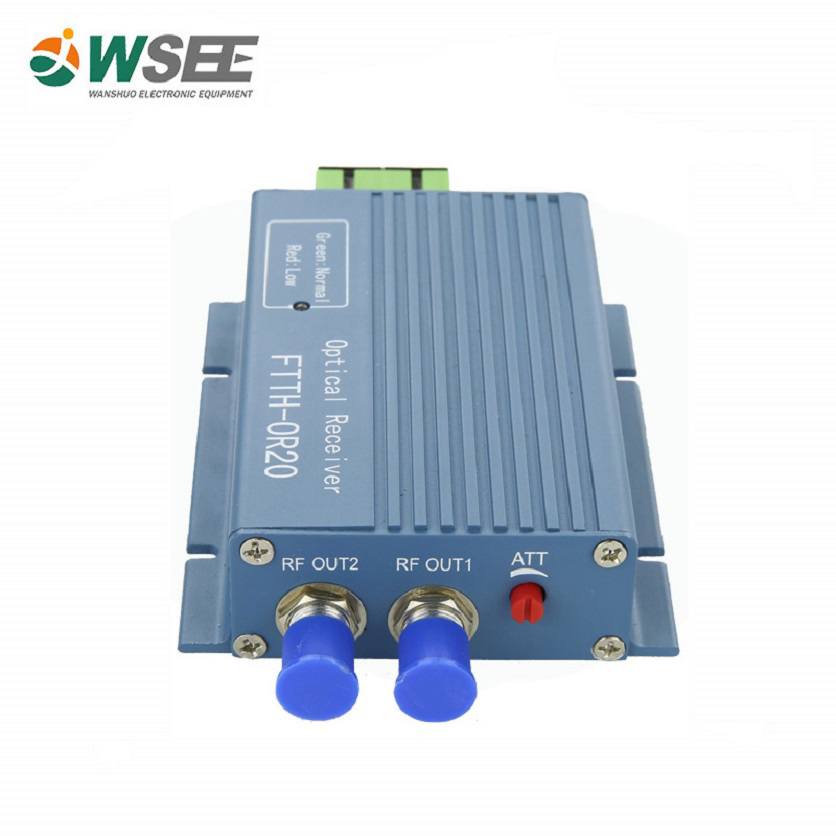

● High-quality aluminum profile shell with good heat dissipation.
● RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies -10dBm reception.
● With light input AGC function (AGC range can be customized);
● Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is less than 1W, with a light detection circuit.
● Can be built-in WDM, single-fiber home (1490/1310/1550nm) triple-network convergence applications.
● Built-in optical isolator, input to achieve 1490/1310nm isolation.
● Multi-stage lightning protection devices (TVS TVS diodes) and lightning protection systems ensure the safe operation of the equipment.
● The output gain is manually adjustable (0~18dB) and the output level is > 80dBuV.
● SC/APC or FC/APC or custom optical connectors, male or female RF interfaces.
● Output power supply can be achieved.
● Single or dual output can be achieved.
Items | Parameters | Items | Parameters |
Input optical power | 0dBm~-10dBm (Analog signal) | AGC Control range | 0dBm~-9dBm |
0dBm~-18dBm (Digital signal) | CTB | ≥65dB | |
Optical reflection loss | ＞45 dB | CSO | ≥62dB |
Optical connector | FC/APC, SC/APC, FC/PC, SC/PC, | Host voltage | DC5V |
Frequency Range | 47~1006MHz | Adapter voltage | AC90V ~145V; AC145V~265V |
In-band flatness | ±1dB@47~1006MHz | Infeed voltage | DC5V |
RF output reflection | ≥16dB@47~550MH ≥14dB@1006MHz | Working TEMP | -20℃ ~+55℃ |
Gain adjustable | 0-18dB | Consumption | <1W |
Output level | >80 dBuV | Product size | 129×79×26mm |
Outputs | 1 or 2 ports | FCL size (10 pcs) | 313×245×83mm |
RF output impedance | 75Ω | FCL size (100pcs) | 500×440×345mm |
CNR | ≥51dB | Net weight | 0.17kgs |
Principle Diagram
