Fiber Optic Module

Home >> Telecom >> Fiber Optic Module

Telecom

Fiber Optic Module

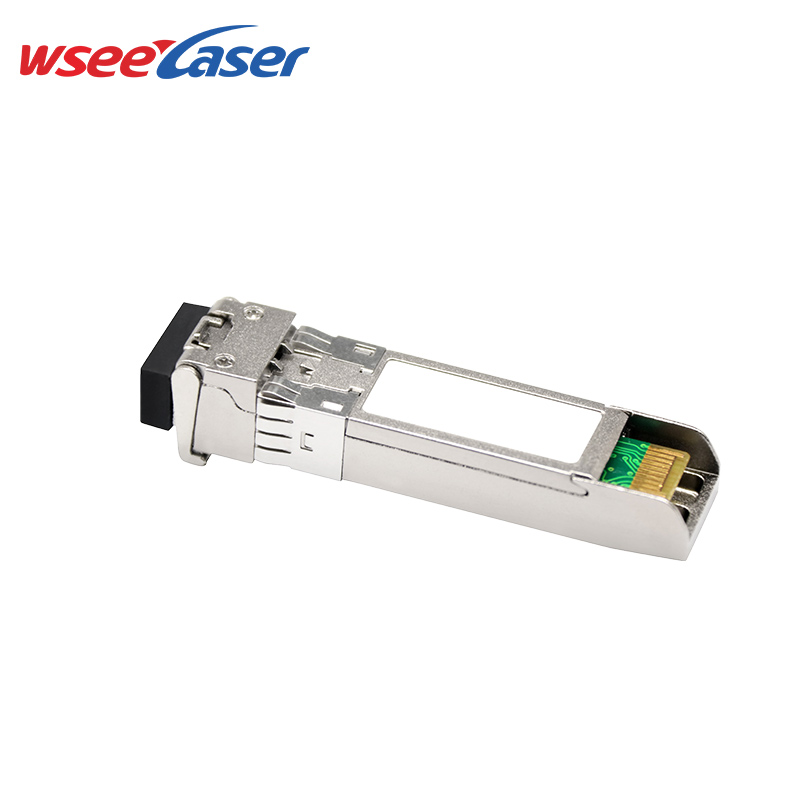

Optical Transceiver Module（10Gb/s 20km SFP+ 1270/1330nm） This 10Gbps SFP+ BIDI transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 20km. The SFP+ BIDI 20km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled View More

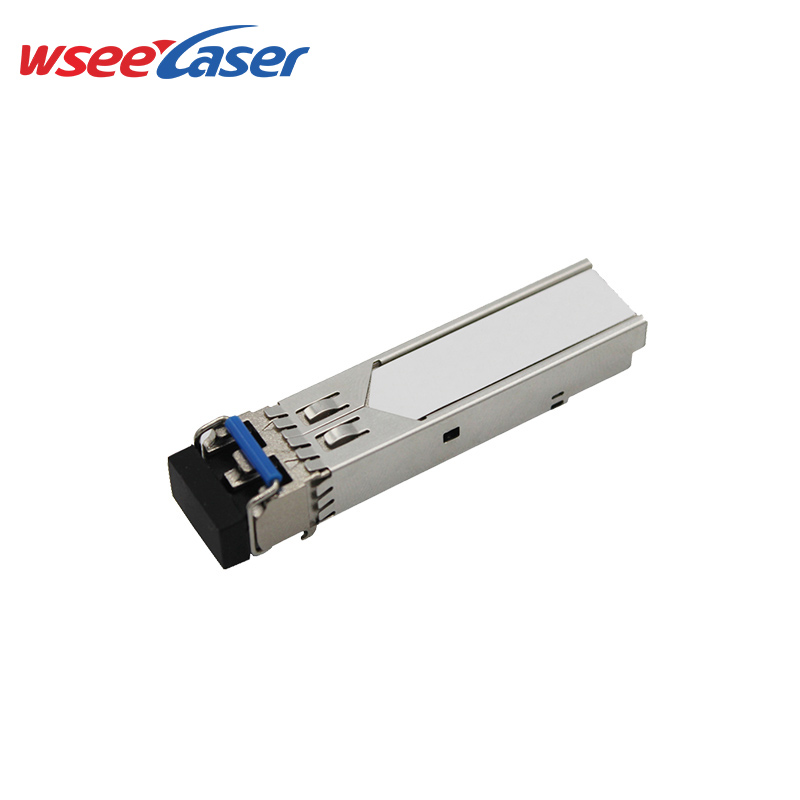

Optical Transceiver Module(1.25Gb/s 1310nm 20km SFP) The SFP transceivers are high performance, cost effective modules supporting 1.25Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a 1310nm FP transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements. View More
Optical Transceiver Module(1.25Gb/s 1310nm 5km SFP) The SFP transceivers are high performance, cost effective modules supporting 1.25Gbps and 5km transmission distance with SMF. The transceiver consists of three sections: a 1310nm FP transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements. View More
M530 Erbium-Ytterbium Fiber Amplifier M530 EYDFA is an optical gain module offering compact package, cost-reduced amplification of optical signal for a variety of applications. An electronic control circuit is integrated inside the module. The default operating mode is automatic Power control. View More

< Previous 1 2 3 4 5 Next >
