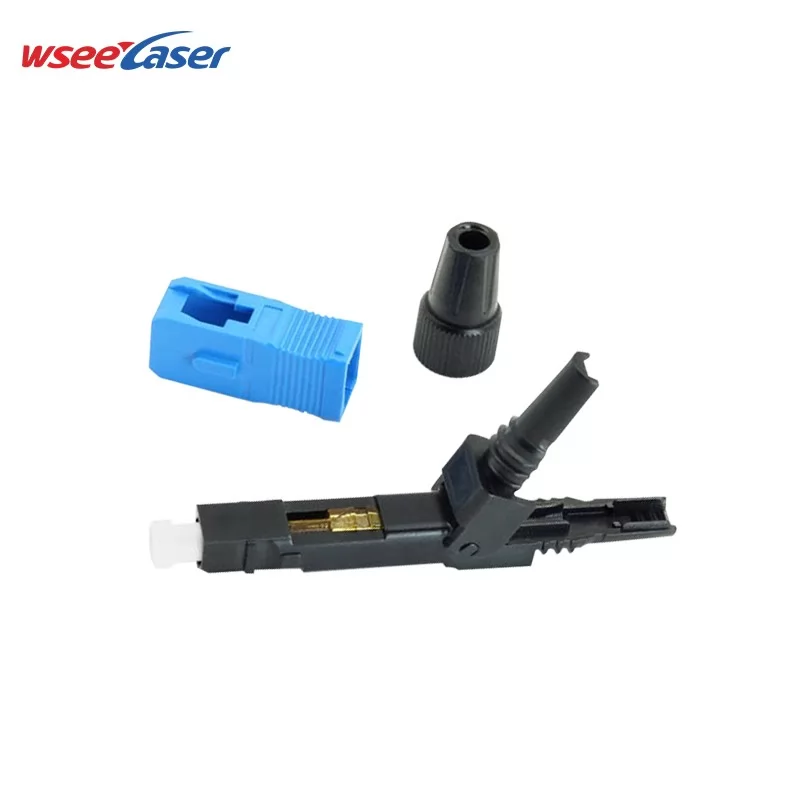

The Fast Connector （field mechanical connector）features pre-embedding for on-site assembly, facilitating quick installation and connection while offering good stability. This product is easy to use and convenient to transport.
Low insertion loss ,high return loss;
Reliable optical performance;
Good connection stability;
Convenient for field installation;
Installs fast,operates easy ;
FTTX Systems
LAN, WAN and Metro Networks
Passive Optical Networks
Other applications in fiber optic systems
Fiber Connector Type | SC/FC/LC |
Insertion Loss(dB) | Typical: 0.20; maximum: 0.50 |
Return Loss (dB) | APC ≥ 55/UPC ≥ 50 |
Operating Temperature (°C) | -40~+85 |
Reusable (Times) | ≥5 |
