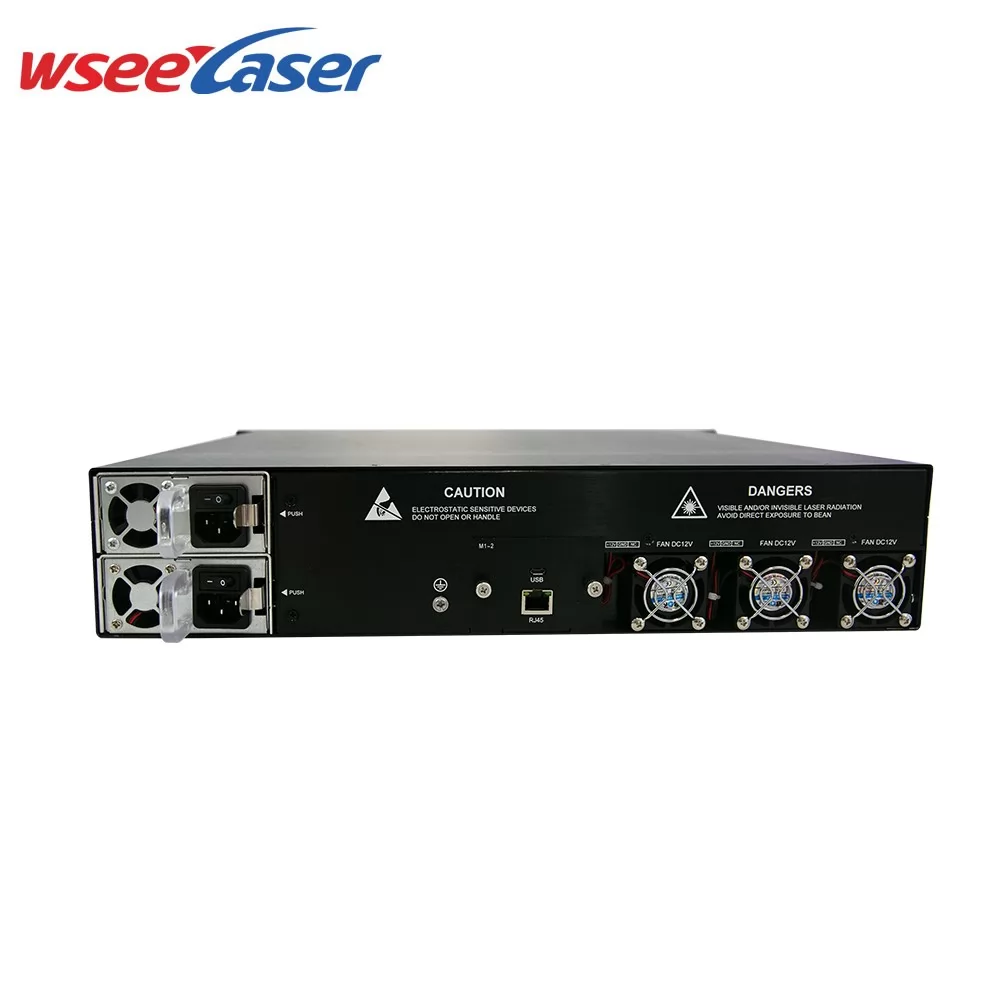

WS-77DEYA2U High Power Fiber Amplifier EDFA

The 077EYAxx series Er-Yb fiber amplifier is a high-power multi-output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is designed for CATV or applications with 18 continuous channel strips (ITU wavelengths). It provides a flexible and low-cost solution for FTTH large-scale coverage in major cities for CATV systems.

  • Feature
  • Parameter
  • Diagram

Performance Characteristics

Adopt Er-Yb co-doped double-clad fiber technology and low-noise pump laser.

With a display backlight control function, allowing users to adjust the backlight time as needed.

With a comprehensive audio-visual alarm function, supporting dual alarm through indicator lights and a buzzer.

The entire machine adopts a modular design, making it easy to maintain and manage.

Standard network management interface, supporting both WEB management and SNMP, with a feature-rich WEB interface.

The 2U supports a maximum total output of 41dBm and offers adjustable output power, with an adjustable range of +0.5~-4dBm.

Optional functions include optical switch, optical transmitter, and RF monitoring.

Optional WDM function is available, achieving triple-play integration.

One-click pull-out dual power supply hot backup design.

Optional time management and remote monitoring by mobile phone are available.


The 077EYAxx series Er-Yb fiber amplifier is a high-power multi-output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is designed for CATV or applications with 18 continuous channel strips (ITU wavelengths). It provides a flexible and low-cost solution for FTTH large-scale coverage in major cities for CATV systems.

The 077EYAxx can achieve single-wavelength transmission of CATV signals or implement single-fiber three-wave transmission design through built-in FWDM. It is an important equipment for building large and medium-sized fiber transmission networks for CATV.




Item

Unit

Technical parameters

Remark

CATV working wavelength

nm

1545~1560

centre wavelength 1550nm

PON OLT working wavelength

nm

1310/1490

Customized 1270/1577

CATV Input power

dBm

-5dBm~+10dBm

Limit -10dBm~+10dBm

Maximum total optical output power

dBm

41


Output power stability

dB

±0.1


Noise

dB

≤ 6


Reflective loss

Input

dB

≥ 45


Output

dB

≥ 45


OSW

Input port


2

Optional Features

insertion loss

dB

≤1.2

switching time

s

0.5

Direct - Modulation transmitter

working wavelength

nm

1550

Optional Features

Input level

dBuV

75~90

Output power

dBmW

3/5/7/10

RF test

Output level

dBuV

≥56

Optional Features

Optical connector


SC/APC;SC/PC;LC/APC;LC/PC

Customized

C/N

dB

≥ 50

Test conditions are in accordance with GT/T 184-2002.

C/CTB

dB

≥ 65

C/CSO

dB

≥ 65

Supply voltage

V

AC(90V ~ 264V)

Optional DC or UPS

Power Consumption

W

150


Operating Temperature Range

-5 - +50


Maximum working relative humidity

%

Maximum 95% non-condensing


Storage temperature range

-40 ~ +80


Maximum storage relative humidity

%

Maximum storage relative humidity


Product net size

mm

480(L)*428(W)*89(H)

without handle

Package dimension(1 unit)

mm

638L638(W262H










None
x
