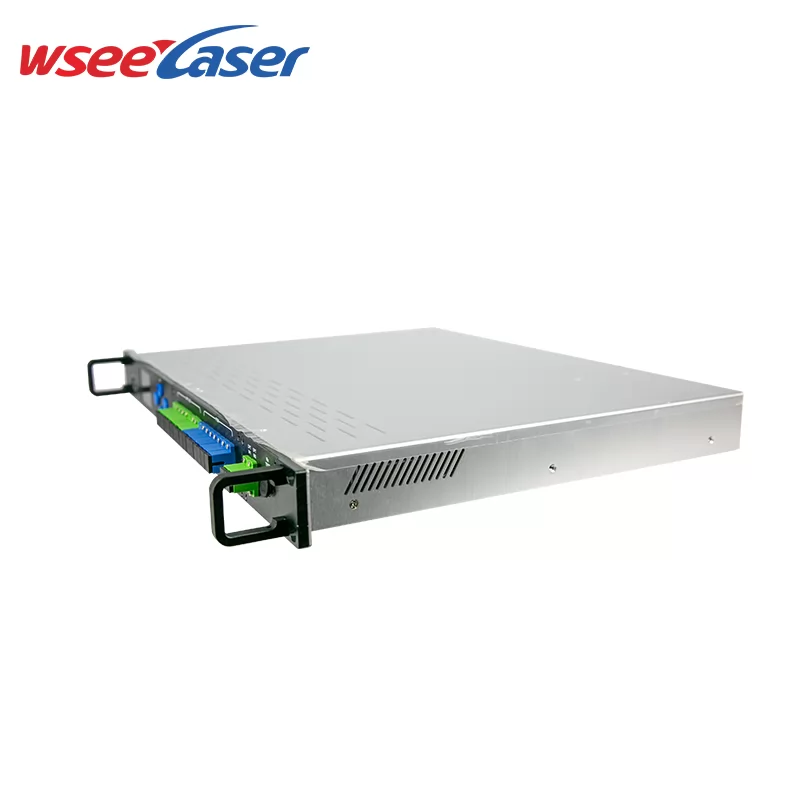

WS-77BEYA1U High Power Fiber Amplifier EDFA

    The 077EYAxx series Er-Yb fiber amplifier is a high-power multi-output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is designed for CATV or applications with 18 continuous channel strips (ITU wavelengths). It provides a flexible and low-cost solution for FTTH large-scale coverage in major cities for CATV systems.

  • Feature
  • Parameter
  • Diagram

Performance Characteristics

Adopt Er-Yb co-doped double-clad fiber technology and low-noise pump laser.

With a display backlight control function, allowing users to adjust the backlight time as needed.

With a comprehensive audio-visual alarm function, supporting dual alarm through indicator lights and a buzzer.

The entire machine adopts a modular design, making it easy to maintain and manage.

Standard network management interface, supporting both WEB management and SNMP, with a feature-rich WEB interface.

The 1U supports a maximum total output of 6.5W(38dBm) and offers adjustable output power, with an adjustable range of +0.5~-4dBm.

Optional functions include optical switch, optical transmitter, and RF monitoring.

Optional WDM function is available, achieving triple-play integration.

One-click pull-out dual power supply hot backup design.

Optional time management and remote monitoring by mobile phone are available.

Applications

The 77EYAxx series Er-Yb fiber amplifier is a high-power multi-output fiber amplifier with a gain spectrum bandwidth of 1545~1560nm. It is designed for CATV or applications with 18 continuous channel strips (ITU wavelengths). It provides a flexible and low-cost solution for FTTH large-scale coverage in major cities for CATV systems.

The 77EYAxx can achieve single-wavelength transmission of CATV signals or implement single-fiber three-wave transmission design through built-in FWDM. It is an important equipment for building large and medium-sized fiber transmission networks for CATV.




Item

Unit

Specification

Note

CATV wavelength

nm

1545~1560

Central wavelength 1550nm

PON OLT wavelength

nm

1310/1490

Customized

1270/1577

CATV Input Power Range

dBm

-5dBm~+10dBm

Limit Range -10dBm~+10dBm

Max Total Output Power

dBm

38


Output Power Stability

dB

±0.1


Noise

dB

≤ 6


Return Loss

Input

dB

≥ 45


Output

dB

≥ 45


OSW

Input port


2

Optional

Insertion loss

dB

≤1.3

Switching time

s

0.5

Direct Modulation Transmitter

Wavelength

nm

1550

Optional

Input level

dBuV

75~90

Output power

dBmW

3/5/7/10

RF Test

Output level

dBuV

56

Optional

Optical Connector


SC/APC;SC/PC;LC/APC;LC/PC

Customized

C/N

dB

≥ 50

Testing conditions are carried out according to GT/T 184-2002

C/CTB

dB

≥ 65

C/CSO

dB

≥ 65

Power Supply Voltage

V

AC(90V ~ 264V)

Optional DC or UPS

Consumption

W

75


Operating Temperature

-5 - +50


Max Operating Humidity

%

Maximum 95% non-condensing


Storage Temperature Range

-40 ~ +80


Max Storage Humidity

%

Maximum 95% non-condensing


Size

mm

482(W)*356(D)*44(H)

Without handle

Package Size(1pc)

mm

590(W)*505(D)*115(H)


Package Size(2pcs)

mm

590(W)*505(D)*220(H)


Package Size(5pcs)

mm

590(W)*505(D)*525(H)
