Performance characteristics
Using erbium and ytterbium co-doped double-clad fiber technology and low-noise pump laser
It has a display backlight control function, allowing users to adjust the backlight time as needed.
It has a complete sound and light alarm function and supports dual alarms of indicator light and buzzer.
The whole machine adopts modular design and is easy to maintain and manage.
Standard network management interface supports WEB network management and SNMP, and the WEB interface is rich in functions.
The 3 U product supports a maximum total output of 4 3 dBm and supports adjustable output power with an adjustable range of +0.5~-4dBm.
Optional optical switch, optical transmitter, RF monitoring and other functions are available.
Output ports: 32~128 channels; optional WDM to achieve triple network integration function.
One-click pull-out dual power supply hot backup design.
Optional time management function and mobile phone remote monitoring function.
Applications

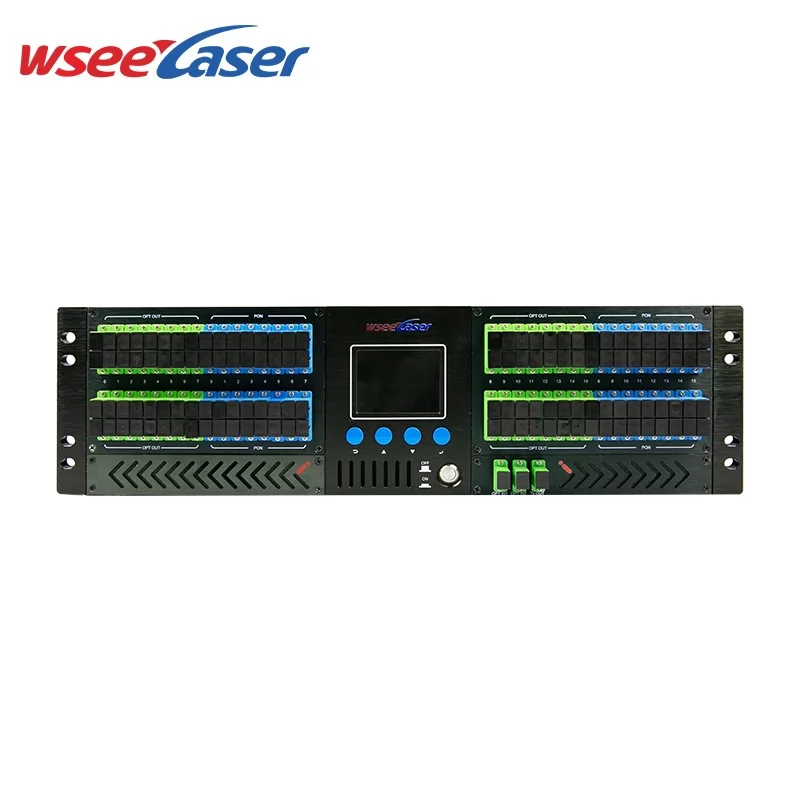

The 077EYAxx series ytterbium-erbium fiber amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1545~1560nm. It is mainly designed for CATV or 1~8 continuous strip channels (ITU wavelength) applications. It provides a flexible and low-cost solution for CATV system's large-area FTTH coverage in large and medium-sized cities.
077EYAxx can realize single-wavelength transmission of cable TV signals, or built-in FWDM to realize single-fiber three-wave transmission design. It is an important equipment for building CATV large and medium-sized optical fiber transmission networks.
project | unit | Technical Parameters | Remark | |
CATV working wavelength | nm | 1545~1560 | Center wavelength 1550nm | |
PON OLT operating wavelength | nm | 1310/1490 | customizable 1270/1577 | |
CATV input optical power range | dBm | -10dBm~+10dBm | ||
Maximum total output optical power | dBm | 43 | ||
Output power stability | dB | ±0.1 | ||
Noise Figure | dB | ≤ 6 | ||
Return Loss | Input | dB | ≥ 45 | |
Output | dB | ≥ 45 | ||
OSW | Enter the number of ports | 2 | Optional features | |
Insertion loss | dB | ≤1.3 _ | ||
switching time | s | <0.5 | ||
Straight tune optical transmitter | Working wavelength | nm | 1550 | Optional features |
Input level | dB | 75~90 | ||
Output Power | dBm | 3/5/7/10 _ | ||
RF detection | Output level | dB | ≥5 6 | Optional features |
Optical connector type | SC/APC; SC/PC; LC/APC; LC/PC | customizable | ||
C/N | dB | ≥ 50 | The test conditions are implemented in accordance with GD/J115-2020 . | |
C/CTB | dB | ≥ 6 5 | ||
C/CSO | dB | ≥ 6 5 | ||
voltage | V | AC(90V~264V) | ||
Machine power consumption | W | ＜ 300 | ||
range of working temperature | ℃ | -5 - +45 | ||
Maximum operating relative humidity | % | Maximum 95% non-condensation | ||
Storage temperature range | ℃ | - 40 ~ + 80 | ||
Maximum storage relative humidity | % | Maximum 95% non-condensation | ||
Dimensions | mm | |||
Packing size (one set) | mm | |||
