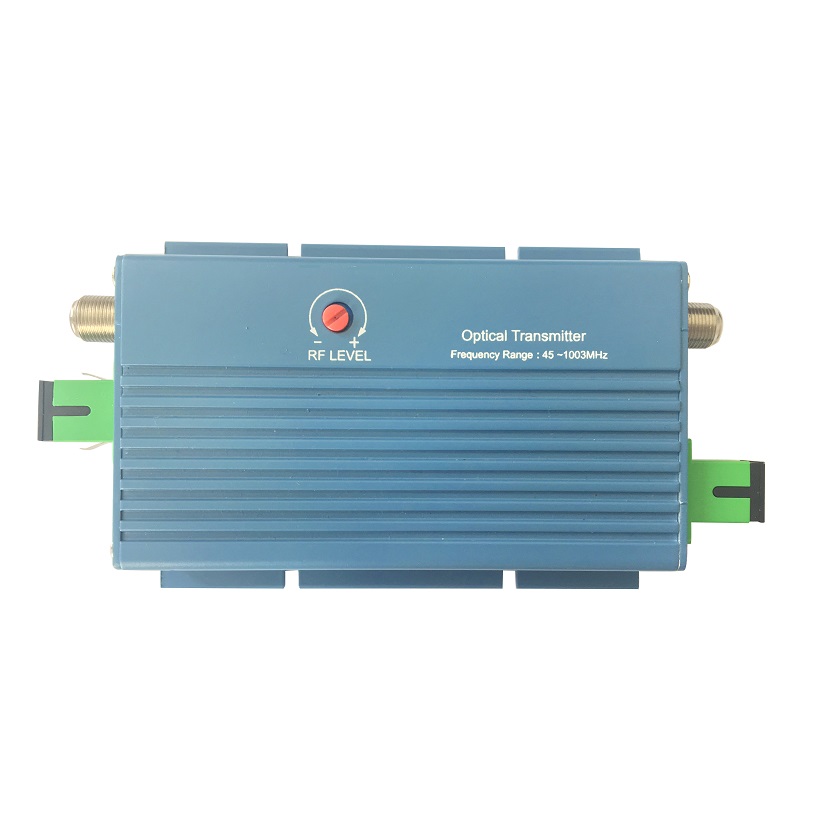

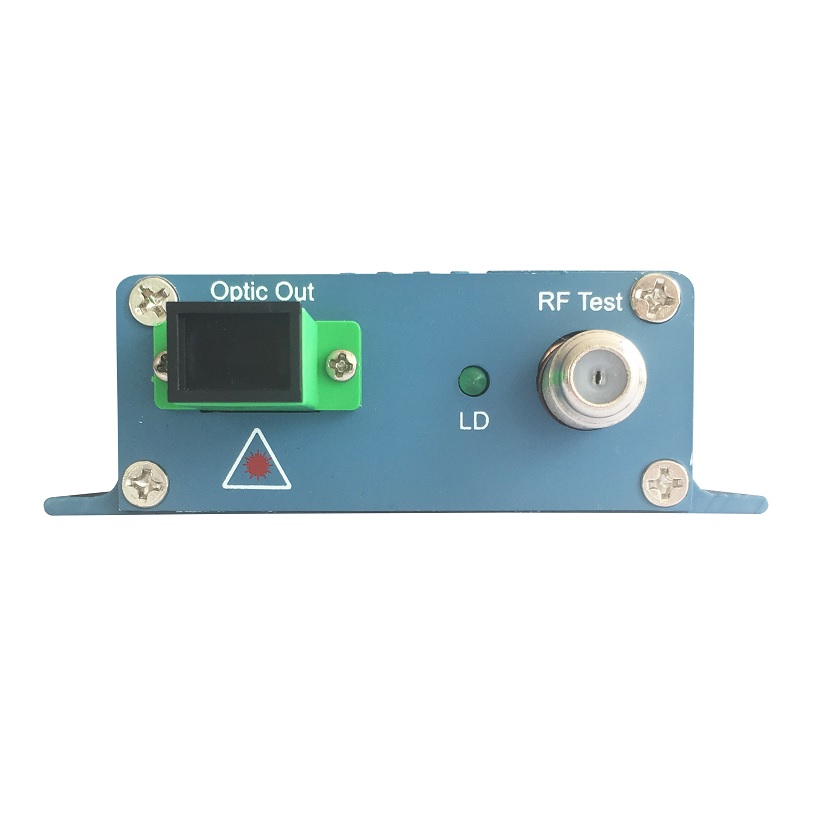

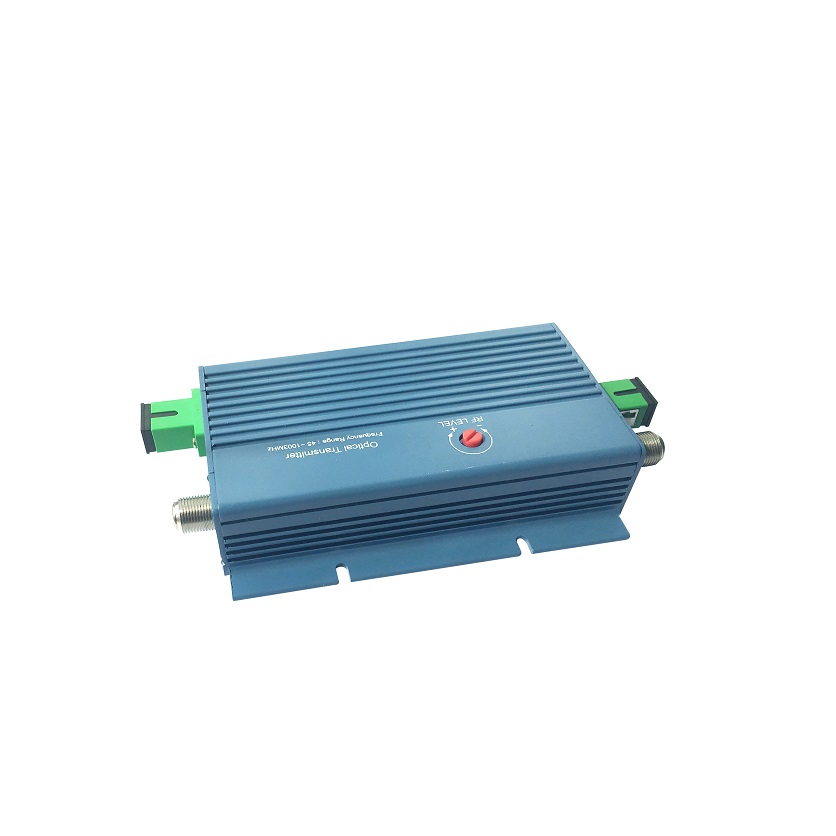

Features
● Power 1310nm: 2~12mW; 1550nm: 3-10dBm can be selected;
● RF level (0~18) dBuv adjustable;
● With signal insertion port, can realize local signal insertion;
● APC control circuit to ensure constant power output;
● 47~862MHz working bandwidth (customized 1000MHz);
● SC/APC or FC/APC or custom optical connectors, metric or imperial RF interfaces.
Application
● CATV 1310nm/1550nm signal transmission
● Secondary network
● Fiber-to-the-home (FTTH) network deployment
Items | Parameters | ||
Optical characteristics parameters | Output optical power | 2~12mW | 3~10dBm |
Wavelength | 1310nm±20 | 1550nm±15 | |
Laser type | DFB coaxial laser | ||
Optical modulation | Direct light intensity modulation | ||
Insertion port light input range | (+2~-7)dBm | ||
Optical connector form | SC/APC or FC/APC (other connectors can be customized) | ||
RF characteristic parameters | Frequency Range | 47~862MHz (customized 1000MHz) | |
RF input level and detection port level | 65~85dBuV (best value 80dBuV) Detection port level: -10dBuV (relative to the input port level) | ||
In-band flatness | ±1dB | ||
Manual level adjustment range | 0~18dB | ||
RF input impedance | 75Ω | ||
Input reflection loss | ≥16 | ||
C/CTB | ≥65 | ||
C/CSO | ≥60 | ||
Carrier to Noise Ratio (C/N) | ≥51 | ||
Equipment operating temperature | -5~+45℃ | ||
Mechanical parameters | Equipment size and weight | 160mm*150mm*30mm; 52g | |

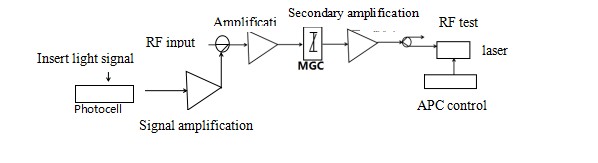

Principle Diagram
