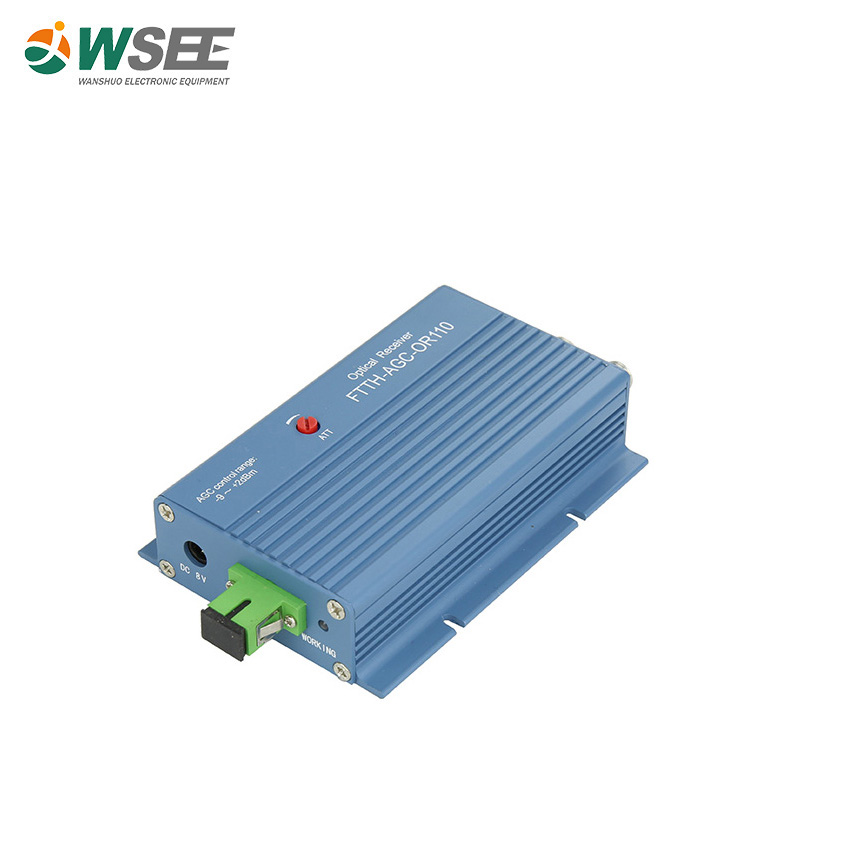

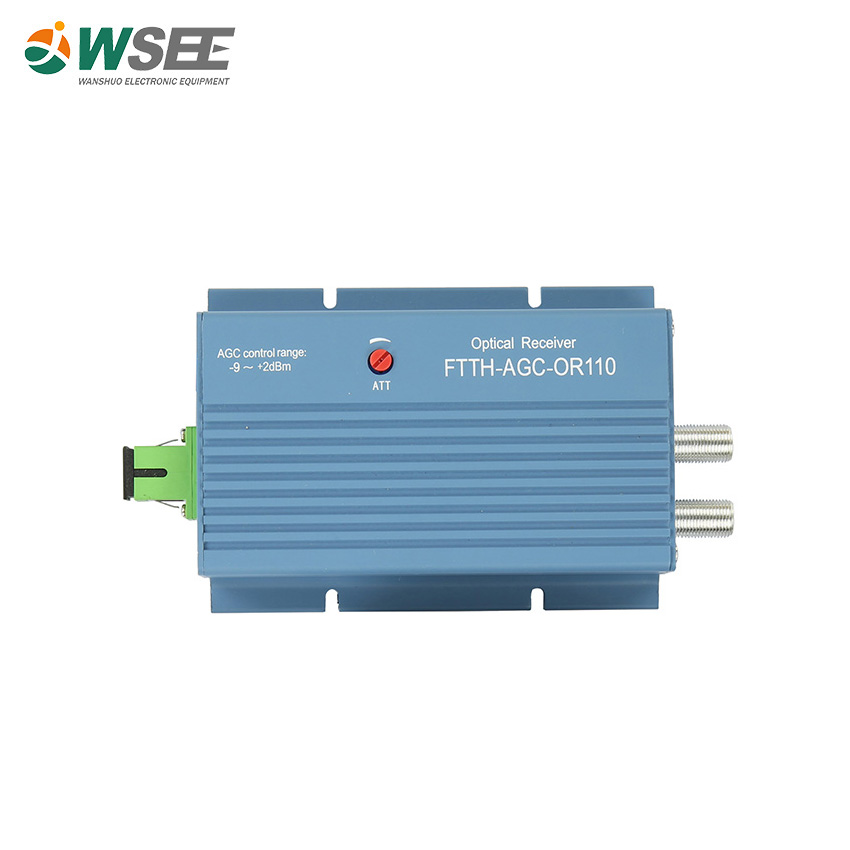

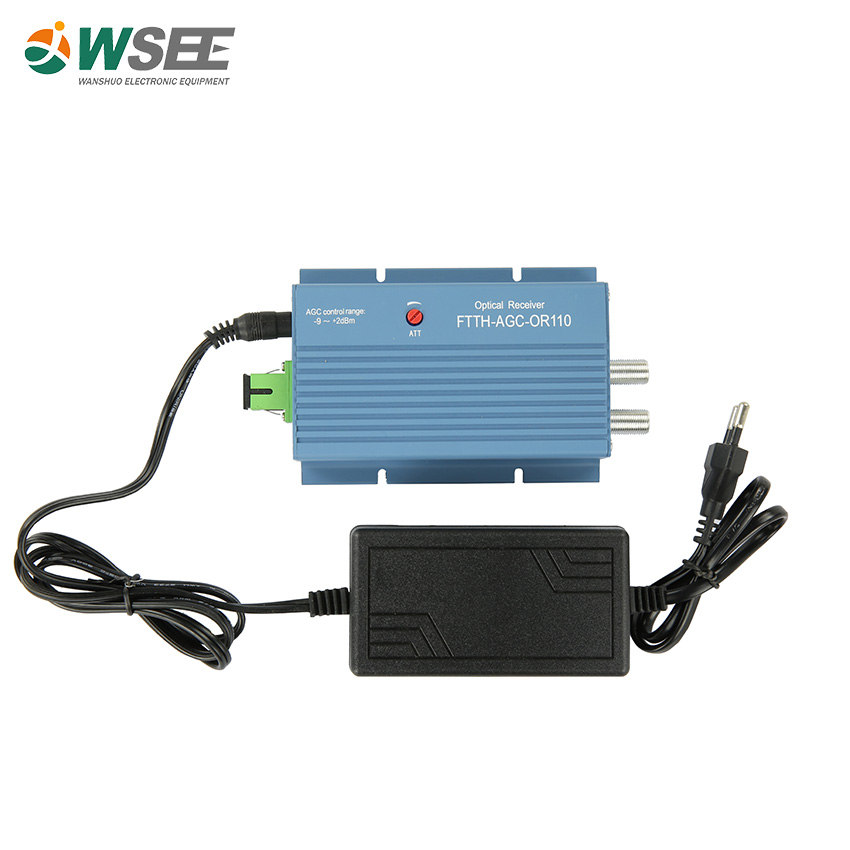

●High quality aluminum shell with good heat dissipation ability;
●RF channel, full GaAs with low noise amplifier circuit, higher output power, higher gain, lower distortion;
●With AGC optical input, keep the output level basically unchanged;
●Multi-level lightning protection device (TVS transient suppression diode), lightning protection ●system is tight, ensuring safe operation of equipment;
●Output level is manually adjustable (0~18dB);
●SC/APC or FC/APC or custom optical connectors;

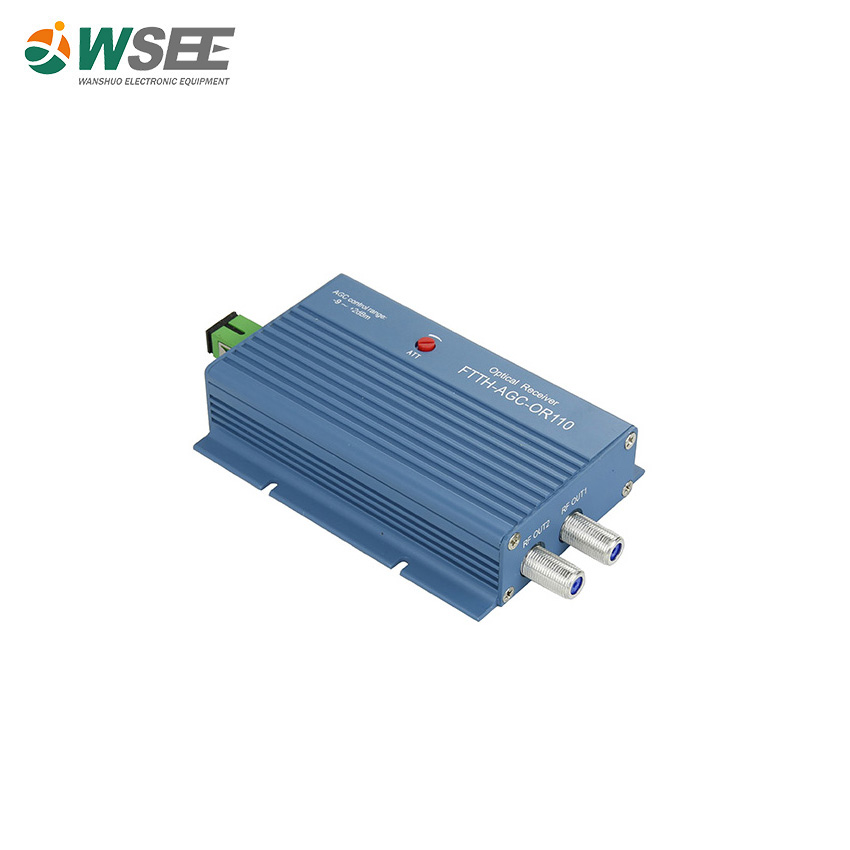

●Male or female RF interface, single or dual port RF mount optional.
Items | Parameters | Items | Parameters |
Optical band width | 1100-1600nm | AGC Control range | +2~-7dBm |
Input optical power | +2dBm~-9dBm | CTB | ≥61dB |
Optical reflection loss | >45 dB | CSO | ≥60dB |
Optical connector | FC/AP or SC/APC or FC/PC or SC/PC | CNR | ≥51 |
Frequency range | 45~862&1006MHz | Host voltage | DC8V |
Inner flatness | ±1dB@45~1006MHz | Adapter voltage | AC145V ~ 265V |
RF output reflection | ≥15dB | Internal feed voltage | DC8V |
Gain adjustable | 0-18dB | working TEMP | -20℃ ~+55℃ |
Output level | ≥102 | Power | <6W |
Outputs | 2 ports | Size | 150*85*27mm |
RF output impedance | 75Ω | Net weight | 260g |
Principle Diagram
